HOME 제품소개 Patch Cords





  - Telecommunication network
- CATV system
- Local Area Network
- Active/Passive device



  - Meets Telcordia GR-326-core, JIS C-5973, TIA/EIA 604
- Customer length
- Various connector type available
- Environmental stable




 Characteristics  Conditions

Value

Min Typ Max
 Insertion Loss(dB)     0.15 0.50
 Return Loss(dB)    SPC 40 45
 UPC 50 55
 APC 60 65
 Durability(dB)  1,000 matings      0.20
 Operating Temperature(dB)  -40°C~80°C     0.20
 Humidity Cycling(dB)  75°C, RH 95%     0.20
 Vibration(dB)  10~55Hz(3 Axis)     0.20
 Impact(dB)  1.5m drop, 8 cycles     0.20



















 Cord dia  0.9 : 0.9mm     2.0 : 2.0mm
 2.4 : 2.4mm     3.0 : 3.0mm
 Polishing  PC : Physical    Contact
 UPC : Ultra pc   APC : Angled pc

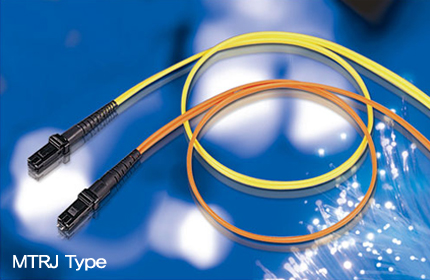

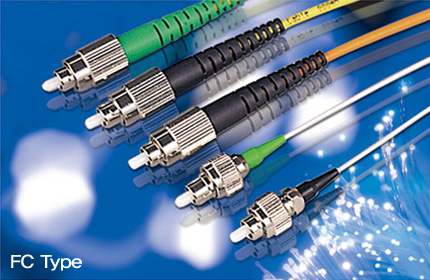

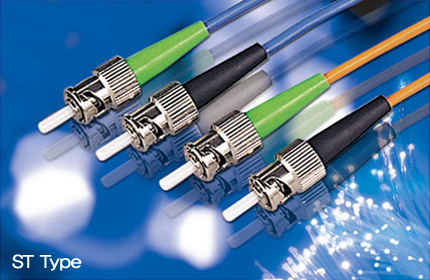

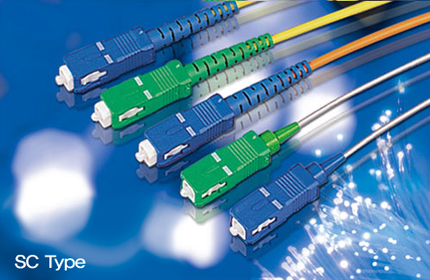

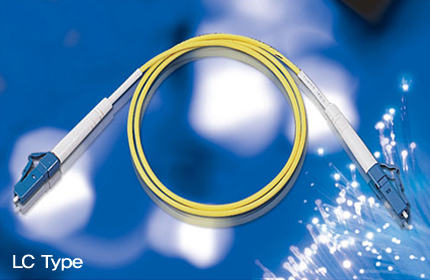

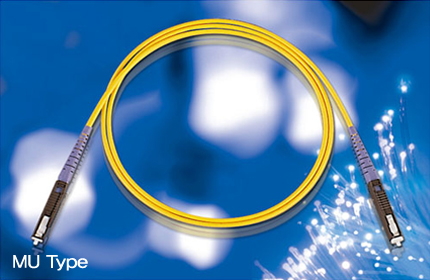

 Connector  SC.FC.ST.LC.MTRJ.MU.D4.MT.MIC

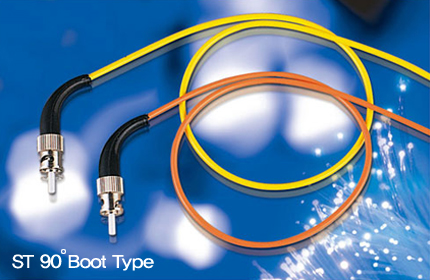

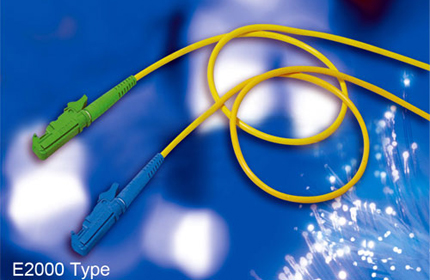

 ST9 (ST 90° Boots), E2000
 Length  1~99m
 Fiber  SM : Single Mode
 MM : Multi Mode(50/125um), OM3
 HMM:High NA Multi Mode(62.5/125um)
 Cord Type  S : Simplex        DR : Duplex Round
 DZ : Duplex Zip  QD : Quadrill
 Optical Patch Cord

  O P C - S - SM - 3 - SC/PC - FC/ APC - 2 . 4
Simplex/ Singlemode / 3 meter/ SC type / PC polished/ FC type / APC polished/ 2.4mm cord

★ NO Record : pigtail
