HOME 제품소개 Optical Couplers

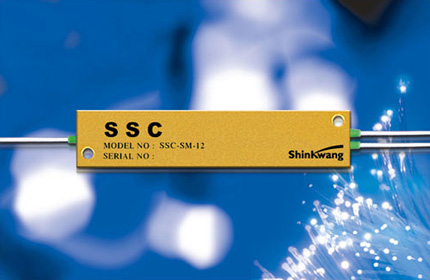

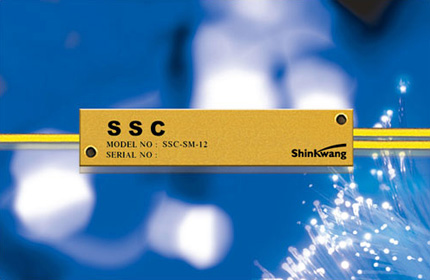

Single window Standard Coupler(SSC) is used to passively split or combine light between two fibers. The device is fabricated using fused biconic tapering technique. The coupling ratio is designed according to customer requirements. Various type of connectors are available.

  - CATV
- Telecommunication
- FTTH
- Local Area Networks

  - Low insertion & excess loss
- Excellent uniformity
- Low PDL
- High directivity



 Coupling Ratio  IL(dB)
 50/50  3.4
 40/60  4.4/2.5
 30/70  5.6/1.8
 20/80  7.4/1.1
 10/90  10.8/0.6
 5/95  14.6/0.4
 1/99  21.5/0.2

 Configuration  1 X 2 1 X 4 1 X 8
 Wavelength(nm)  1310±10 or 1550±10
 Typical Excess Loss(dB) 0.07  0.3 0.5
 Max. Insertion Loss(dB) 3.4  6.8 10
 Uniformity(dB) ≤0.4 ≤0.8 ≤1.2
 Directivity(dB) >55
 Polarization Dependent Loss(dB) ≤0.1   ≤0.2 ≤0.3
 Operating Temparature(°C) -40~+80
 Dimension(mm) 85(L)x75.5(W)x10(H) 100(L)x80(W)x10(H) 144(L)x95(W)x10(H)
* Without Connector Loss

 Output length  1~99m
 Polishing  SPC, UPC, APC
 Input length  1~99m
 Connector  SC, ST, FC, LC, MU, D4
 Package type  S : for Bare fiber(250um)
 L : for Loose tube(0.9mm)
 A : for Cord(2.4mm)
 Wavelength(nm)  1:1310,2:1550
 Coupling ratio  5050 : 50/50, 1090 : 10/90,
 25252525 : 25/25/25/25
 Configuration  1×2:0102,1×4:0104,1×8:0108
 Single window Standard Coupler
