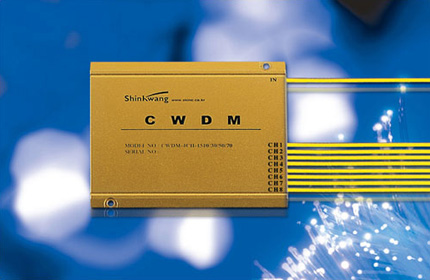

CWDM(Coarse Wavelength Division Multiplexer) is expanding the bandwidth of Metro / Access
communication networks. Our CWDM is based on thin film filter technology and metal bonding micro
optics packaging. We provides high quality CWDM with flat channel bandwidth, flexible channel
configuration, low insertion loss and high isolation.

- Dense WDM System
- Fiber Optic Instrument
- Metro/Access communication networks



- High Channel Isolation
- Low Insertion Loss
- Epoxy-Free Optical Path
- High Stable and Reliability





Parameter Specification
 Channels 1270~1610nm
 Channel Spacing 20nm
 Passband @ 0.5dB Max, ±8nm
 Insertion Loss Max, 2.5dB
 Adjacent Channel Isolation Min,10(Add),25(Drop)
 Non-Adjacent Channel Isolation Min,25(Add),40(Drop)
 Directivity
Min 55dB
 Optical Input Return Loss
Min 55dB
 Polarization Dependent Loss
Max 0.1dB
 Polarization Mode Dispersion
Max 0.1ps
 Thermal Stability
Max 0.005dB/℃
 Thermal Stability Drift
Max 0.002nm/℃
 Optical Power
Max 250mW
 Tensile Load
Min 5N
 Storage Temperature
-45°C to +85°C
 Operating Temperature
-20°C to +65°C
 Package Dimension
A:100(L) X 80(W) X 10(H)


 Output length  1~99m
 Polishing  SPC, UPC, APC
 Input length  1~99m
 Connector  SC, FC, LC, MU, D4, ST
 Package type  L : for Loose tube(0.9mm)
 A : for Cord(2.4mm)
 Configuration  1×4:0104, 1x8:0108
 Wavelength(nm)  1270/1290/1310/1330/1350/1370/
1390/1410/1430/1450/1470/1490/
1510/1530/1550/1570/1590/1610
 Coarse Wavelength Division Multiplexer
